In the ever-evolving world of industrial fabrication, efficiency, precision, and automation are no longer luxuries—they are necessities. The demand for structural steel components, particularly H-beams, I-beams, and channel steel, continues to grow as construction, shipbuilding, and heavy equipment manufacturing industries push the boundaries of scale and complexity. In response to these evolving needs, Wysong Fabrication Equipment has introduced the H13 Beam Laser, a state-of-the-art fiber laser cutting machine designed to tackle the unique challenges of large-scale steel processing.
Unlike conventional sheet metal lasers, the H13 Beam Laser is engineered specifically for cutting thick, long, and heavy steel sections with unparalleled accuracy. This is not just another laser cutting machine; it is a purpose-built solution that integrates precision engineering, automation, and efficiency into one powerful system. With its ability to perform straight cuts, beveling, hole cutting, and marking in a single operation, the H13 represents a seismic shift in the way fabricators approach structural steel processing.
At the heart of the H13’s performance is its cutting-edge fiber laser technology. Unlike traditional CO₂ lasers, which suffer from high energy consumption and complex maintenance requirements, fiber lasers provide a more efficient, reliable, and cost-effective solution. The H13 is equipped with a Raycus fiber laser, renowned for its high electro-optical conversion efficiency, which translates to lower power consumption and reduced operational costs. With conversion rates reaching 30 to 40 percent, energy waste is significantly minimized, making this machine an attractive option for manufacturers looking to optimize their bottom line.
H13 Beam Laser
The benefits of fiber laser technology extend beyond efficiency. The single-mode fiber design ensures high beam density, resulting in superior cutting quality, especially for intricate geometries and thinner materials. Unlike plasma cutting, which often leaves rough and inconsistent edges, the H13 delivers smooth, precise cuts with minimal heat-affected zones, reducing the need for secondary finishing. The machine’s high-speed cutting capabilities allow it to reach speeds of over 1,500 inches per minute, making it one of the fastest and most reliable solutions in its class.
Precision is paramount in structural steel cutting, and the H13 excels in this domain with an advanced motion control system that ensures positioning accuracy of ±0.02 inches. Its intelligent automation system continuously adjusts cutting parameters in real time, compensating for material variances and ensuring consistency across every cut. Whether working with straight beams or complex bevels, the H13 provides repeatable, high-quality results that reduce material waste and improve overall production efficiency.
Beyond cutting quality, the H13 also brings a level of automation that reduces manual intervention and increases productivity. One of its standout features is its real-time compensation system, which dynamically adjusts cutting paths and settings based on material properties. This means fewer interruptions, less rework, and a streamlined fabrication process that significantly cuts down on labor costs. The machine’s ability to integrate with automated material handling systems further enhances efficiency, allowing for seamless operation with minimal downtime.
For fabricators working with structural steel, bevel cutting is a crucial function, particularly in applications that require welded joints. The H13 is designed to handle a variety of bevel types, ensuring uniformity and accuracy across all cuts. Traditional bevel cutting methods often require multiple setups and manual adjustments, leading to inconsistencies and time-consuming processes. The H13 eliminates these inefficiencies by automating beveling with its intelligent control system, reducing the risk of errors and ensuring perfect edges for every component.
Another critical aspect of steel fabrication is hole cutting, which traditionally requires additional machining steps or drilling operations. The H13 streamlines this process by incorporating high-precision hole cutting capabilities directly into its cutting cycle. This not only reduces production time but also eliminates the need for secondary processes, further improving workflow efficiency. Additionally, the machine’s nesting software optimizes material usage, ensuring that every inch of steel is utilized effectively to minimize scrap.

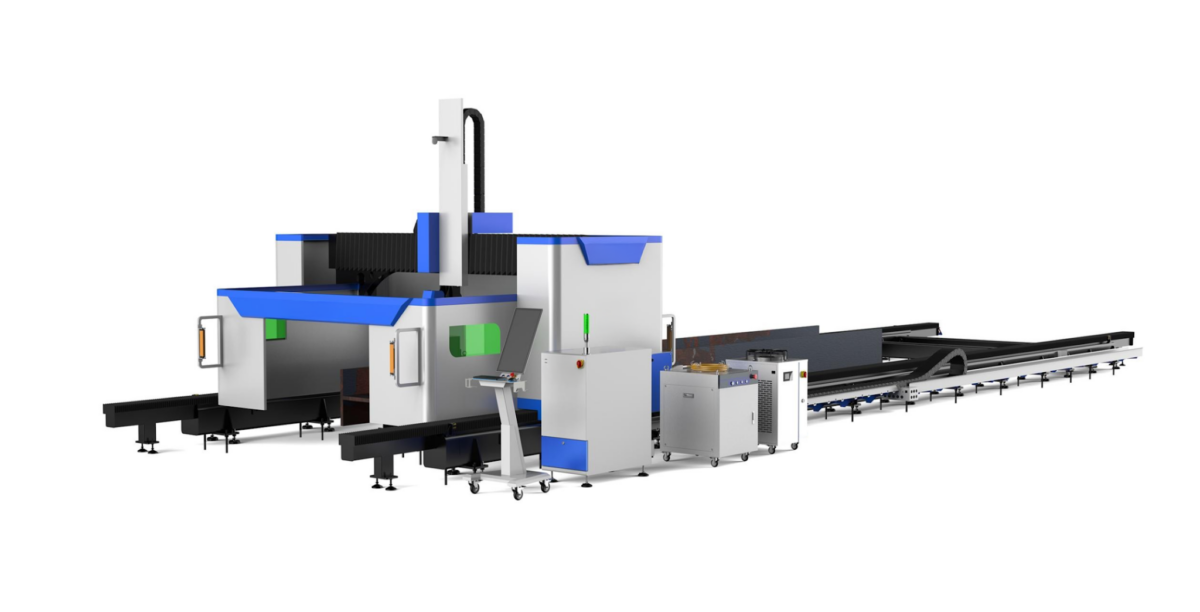

H13 Beam Laser

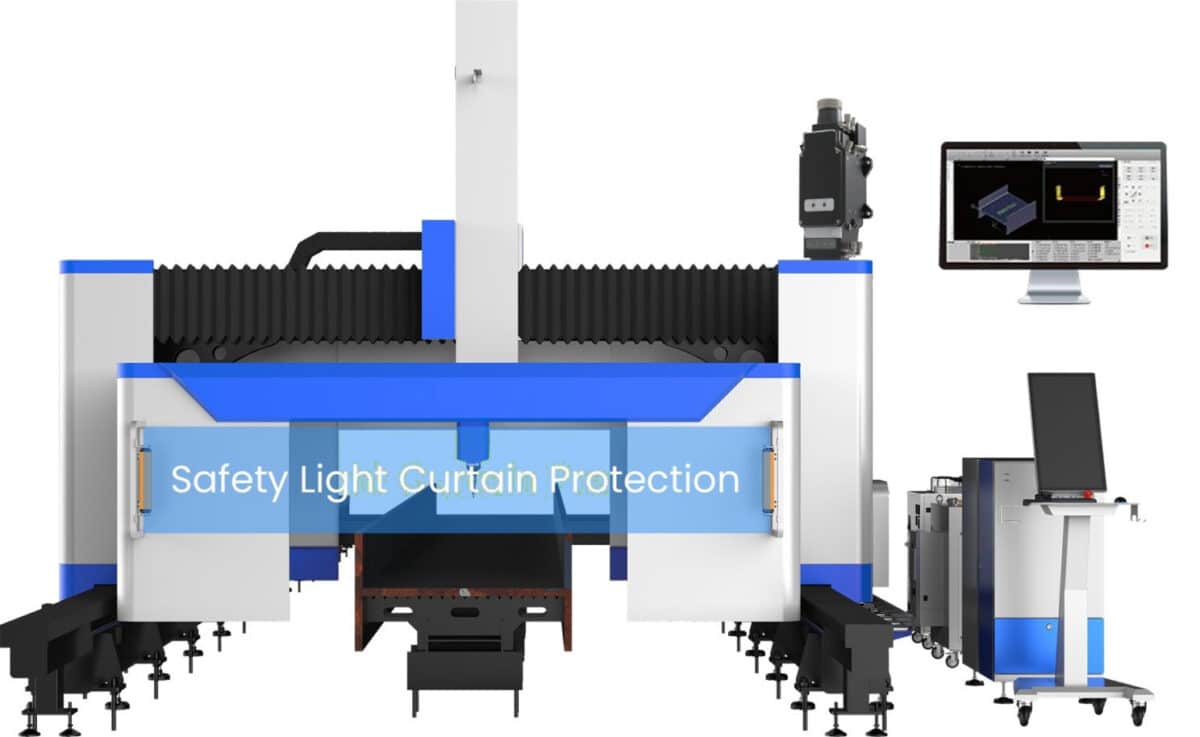

While performance and efficiency are key factors in the success of any industrial machine, safety remains a top priority. The H13 Beam Laser is designed with comprehensive safety measures to protect operators and maintain a secure work environment. Its built-in safety light curtains provide real-time monitoring, ensuring that any obstruction within the cutting area triggers an immediate shutdown. The sealed cutting chamber minimizes exposure to laser radiation and airborne particulates, while overload protection safeguards the machine’s motors and components from excessive wear. These features work together to create a safe and reliable working environment that meets stringent industry standards.
The versatility of the H13 Beam Laser extends beyond traditional fabrication shops. It has quickly gained traction in industries such as construction, shipbuilding, automotive, and aerospace, where high-strength steel components are essential. For shipbuilders, the ability to cut large beams and channel steel with pinpoint accuracy ensures structural integrity in vessel construction. In the automotive sector, the machine’s ability to handle complex geometries makes it an invaluable tool for manufacturing chassis components and reinforcement beams. Infrastructure projects also benefit from the H13’s precision, as it allows for the creation of support structures and framework components with minimal material waste.
For many fabricators, maintenance and longevity are major concerns when investing in high-performance machinery. The H13 is designed with durability in mind, featuring core components rated for over 100,000 hours of continuous operation. Its optical system is protected by dust-resistant covers, extending the lifespan of critical components and reducing the frequency of maintenance. Unlike traditional CNC machines that require frequent calibration and servicing, the H13’s robust design ensures long-term reliability with minimal downtime. Additionally, its collision protection system allows for easy self-replacement of the cutting head, eliminating costly service calls and keeping the machine running at peak efficiency.
The introduction of the H13 Beam Laser represents a turning point in the metal fabrication industry. No longer do fabricators have to rely on outdated cutting methods that are slow, inefficient, and labor-intensive. By combining speed, precision, and automation, the H13 sets a new standard for structural steel processing, offering a solution that is both cost-effective and future-proof. As industries continue to evolve and demand for structural components increases, machines like the H13 will play a crucial role in meeting production challenges while maintaining the highest standards of quality.

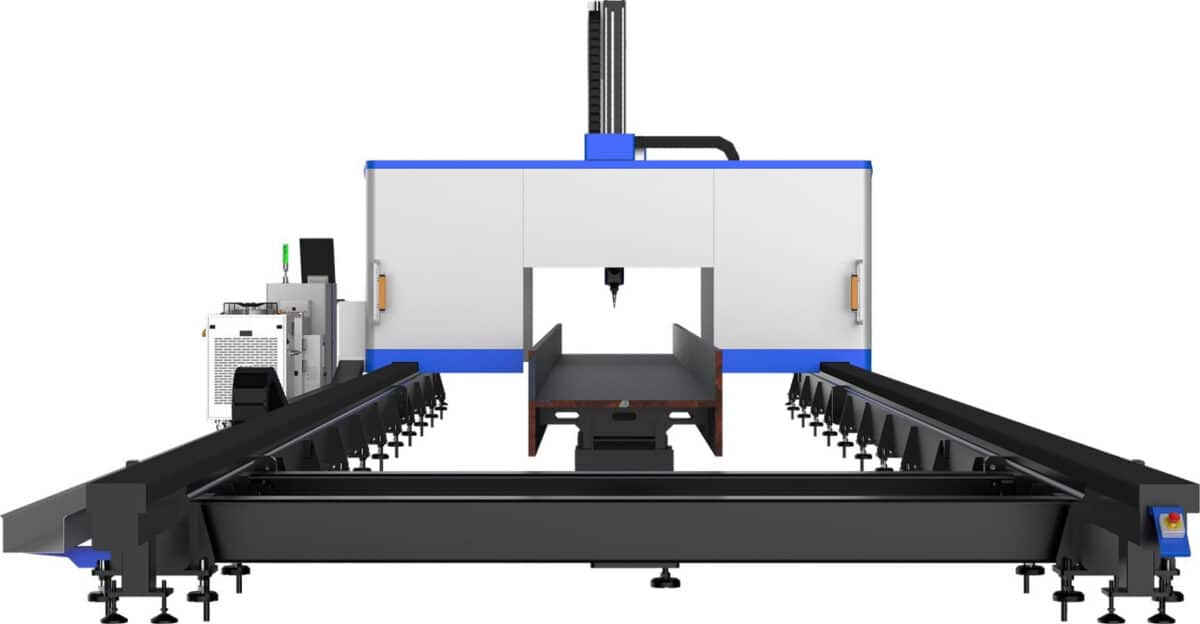

H13 Beam Laser
For fabricators looking to stay ahead of the curve, investing in the right technology is no longer optional—it’s essential. The H13 Beam Laser is more than just a cutting machine; it’s a comprehensive solution designed to improve efficiency, reduce costs, and deliver superior results. With its intelligent automation, energy-efficient fiber laser technology, and advanced safety features, the H13 is poised to become an indispensable asset for any manufacturer working with structural steel.
In an industry where precision and speed dictate success, the Wysong H13 Beam Laser stands as a testament to innovation, proving that the future of metal fabrication is here. As businesses look for ways to enhance productivity and remain competitive, the H13 offers a clear path forward, providing the tools necessary to meet the growing demands of modern manufacturing.
