FIBER LASERS
Wysong A-Series Fiber Laser
Economy, Speed, and Precision.
Wysong’s A Series fiber laser offers an economical entry point into cutting precision, speed, and energy efficiency for modern fabrication shops.
Built with the latest technology and designed for high-volume production, the A-Series delivers reliable, fast, and clean cuts on a wide variety of materials.
Why Wysong?
QUALITY FIRST
Wysong equipment is well known throughout North America for being among the most durable machines on the market. Whether your machine is produced at our 110,000 sf factory in North Carolina or by one of our carefully selected partners, we promise to provide proven fabrication equipment with a focus on quality and customer service.
We spend an average of 40 hours of quality assurance on every machine we ship to ensure that it meets our demanding standards.
Machines Backed By People
When you partner with Wysong, you get more than just a great machine. Our team has hundreds of years of combined experience with fabrication equipment, and we use this experience daily to help our customers.
We understand that every shop is different, which is why we take the time to learn your processes, challenges, and goals before recommending solutions.
Whether you need complementary phone support, field service, technical training, or new equipment for your shop, we’re here to help.
OVERVIEW
A SERIES FIBER LASER
Standard Features
- Raycus Fiber Laser Resonator
- Raytools Cutting Head
- Dust Collector Unit
- Laser chiller unit
- CNC Load/Unload Table
- In Cabin and Outside Camera System W/V Guard Mobile Access
- A/C Unit For Electrical Cabinet
- iLaser ESA S875W 21” Touch Screen CNC Controller
- (2) Gas Regulators (Airgas)
- Gas Console System
- Starter Consumable Package Included (5 Protective Lens, 2 Ceramics, 50 Nozzles)
- Laser cabin protective glass fully enclosed
- (4) SICK light curtain safety post protection for table.
- Automatic Lubrication Of Bridge Axis
Additional Features
- Radan RADProfile CAD CAM
- Radan Automatic Nesting Software
- Radan USA Service Level Standard Software
- Support Package One (1) Year Included
- Pull out scrap bin or
- Automatic scrap conveyor
CONTROLS

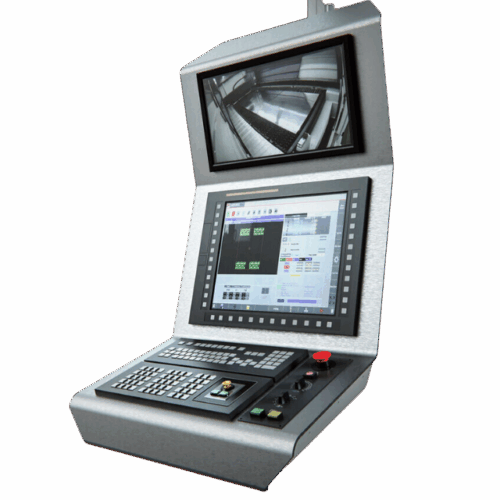

ESA VIS-875W Control
- Windows operating system
- Multi-touch graphic screen
- Multifunctional keyboard, button/joystick/speed potentiometer
- EtherCAT communications for data transfer or machine control
- Enhanced Database for cutting parameters, for different type
materials and thicknesses - Fly Cut functions for same direction high-speed cutting
- “No Piercing” technology for thin materials, efficiency time and
cost improvements - Better results at thick cuts, by prioritizing all piercings process before regular cutting
- Remote connection to PC
- Multi-language support
- Enhanced sheet metal recognition software
- Referencing and sheet alignment functions
- Setting different user-login levels for operators/maintenance/admin
- Multi-functional workpiece job order search/recall function
options
Power Ratings
Wysong fiber lasers are available in a wide range of power ratings, from 2 kW to 30 kW, each tailored to specific material types, thicknesses, and production goals. The power level of a fiber laser directly affects its cutting speed, thickness capacity, edge quality, and operational efficiency.
2 kW to 4 kW fiber lasers are well-suited for shops that focus on light-gauge materials such as mild steel, stainless steel, and aluminum up to around 1/4″ thick. These systems offer excellent cut quality and are highly efficient for thin-sheet processing, making them ideal for industries like HVAC, signage, and electrical enclosures.
6 kW to 12 kW fiber lasers provide a significant boost in cutting speed and material thickness capability. These mid-range systems strike a balance between versatility and power, cutting mild steel up to 1″, stainless steel up to 1/2″, and aluminum with excellent edge quality. They are often used in job shops and contract manufacturers where the range of material types and thicknesses varies daily.
15 kW to 30 kW fiber lasers represent the high-performance end of the spectrum, built for heavy-duty cutting of thick plate with exceptional speed and minimal dross. These machines are increasingly popular in industries such as construction, shipbuilding, heavy equipment, and large-scale metal service centers.

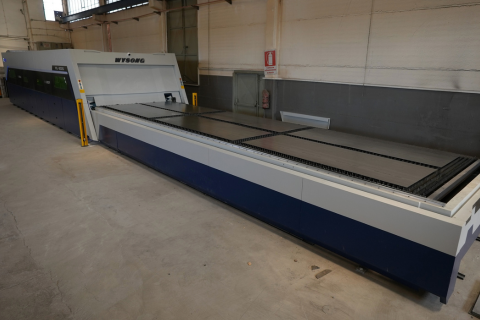

shuttle Table Sizes
Wysong offers a range of fiber laser table sizes designed to meet the needs of various fabrication shops, from compact operations to large-scale production environments. The table size of a fiber laser cutting machine directly influences the maximum part dimensions, sheet handling capacity, and production flexibility.
Standard table sizes include 1500 x 3000 mm (5′ x 10′) and 2000 x 4000 mm (6.5′ x 13′), which are the most common formats in the industry.
For shops that cut larger parts or thicker plate, Wysong offers large-format fiber lasers with tables up to 2000 x 8000 mm (6.5′ x 26′) or even longer on request. These extended bed systems are designed for structural steel, heavy equipment, and architectural fabricators who require oversized component production.
Improve Your Workflow with
the A Series Fiber laser
Wysong fiber lasers deliver high-performance cutting across a wide range of materials and thicknesses. Our fiber lasers are engineered to give fabricators the speed and accuracy needed to stay competitive in today’s fast-paced manufacturing environment. Whether you’re processing thin-gauge stainless or thick mild steel, Wysong fiber lasers provide the edge quality and throughput modern shops demand.
Why Cut with Fiber?
Cuts Faster – Delivers high-speed cutting on thin to thick materials with unmatched precision
Increases Shop Capacity – One machine can replace multiple slower-cutting systems, freeing up labor and floor space
Improves Edge Quality – Produces clean, burr-free cuts that often eliminate secondary processing.
Processes a Wide Range of Materials – Efficiently cuts mild steel, stainless steel, aluminum, copper, brass, and more.
Reduces Scrap – Precision cutting means fewer errors, tighter nesting, and better material utilization.
Ideal for High-Mix Production – Rapid changeovers and smart control software make it easy to handle varied part runs.
REQUEST A PROPOSAL
Ready to Upgrade Your Shop?
Let’s cut through complexity—together.
No matter your industry or production scale, Wysong fiber laser systems are built to help you cut smarter, faster, and cleaner. Get in touch with our experts today to explore the best solution for your operation.
