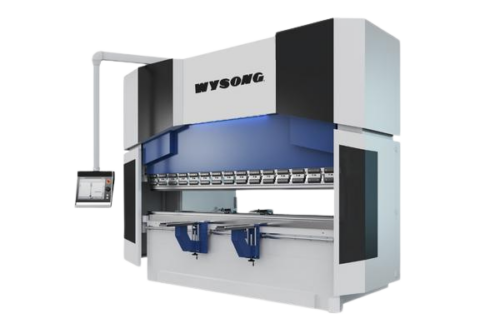

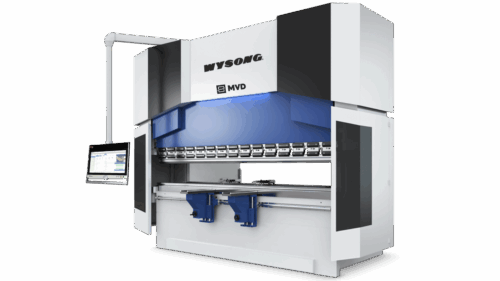

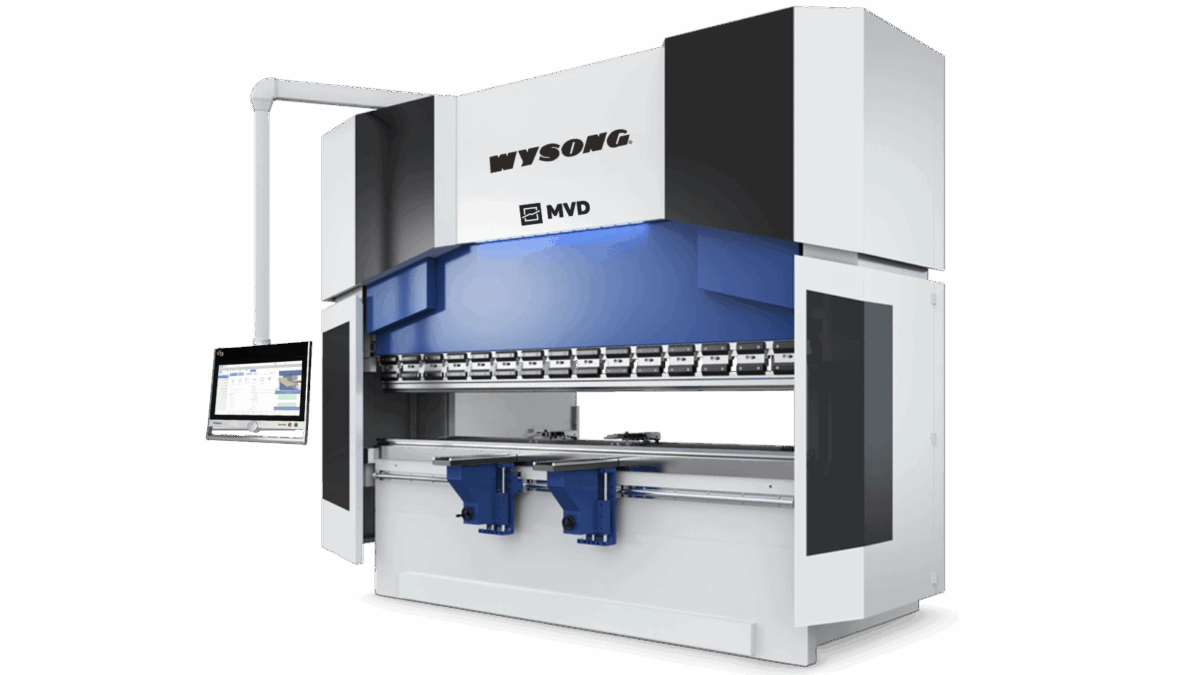

MB SERIES PRESS BRAKE

Built to last. Engineered for reliability, speed, precision, and durability.

Request Proposal
  • 10″ Stroke, 16″ Throat Depth
  • Delem, ESA, or PC Controls
  • Servo Motorized Back Gauge
  • .0004″ Ram Repeatability
  • Sliding Front Sheet Support Arms
  • Front and Rear Operator Safety
  • Full Length Segmented Punch and 4 Way Die
  • LED illumination on RAM
  • Manual Pump for Machine Lubrication

Why Wysong?

QUALITY FIRST

Wysong equipment is well known throughout North America for being among the most durable machines on the market. Whether your machine is produced at our 110,000 sf factory in North Carolina or by one of our carefully selected partners, we promise to provide proven fabrication equipment with a focus on quality and customer service.

We spend an average of 40 hours of quality assurance on every machine we ship to ensure that it meets our demanding standards.

OUR PROCESS

Machines Backed By People

When you partner with Wysong, you get more than just a great machine.  Our team has hundreds of years of combined experience with fabrication equipment, and we use this experience daily to help our customers.

We understand that every shop is different, which is why we take the time to learn your processes, challenges, and goals before recommending solutions.

Whether you need complementary phone support, field service, technical training, or new equipment for your shop, we’re here to help.

ABOUT US

BUILT TO LAST
CE CERTIFIED

45 - 350 TONS
UP TO 30' LENGTH

INDUSTRY 4.0
COMPATIBLE

OVERVIEW

MB SERIES Standard Features

  • Y1,Y2, X CNC (3 Axes)
  • 10″ Stroke,  16″ Throat Depth
  • Servo Motorized Back Gauge with ±.001″ Accuracy (X=30″)
  • Manual Promecam Style Quick Clamp Punch Holder
  • Sliding Front Sheet Support Arms
  • AKAS Front Laser Safety
  • Rear Light Curtains
  • GIVI Optic Linear Scales (Italy)
  • HAWE Hydraulics (Germany)
  • Full length, segmented 85° precision ground punches
  • Full length, segmented 4 way precision ground dies
  • LED illumination on RAM
  • Manual Pump for Machine Lubrication

Optional Features

  • Up to 6-Axis Back Gauge
  • 2″ Extended Stroke
  • 4″ Extended Throat
  • Delem, ESA, or PC Controls
  • Automatic Lubrication
  • Hydraulic Clamping
  • Wila Crowning
  • Wide Bottom Table
  • Manual or CNC crowning
  • CNC Sheet Followers
  • Additional Back Gauge Fingers
  • Hydraulic Oil Chiller, Heater
  • Electrical Cabinet A/C
  • Laser Bending Line
  • Extra Weight for Machine

CONTROLS

DA-69S
  • 24″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Profile-S3D offline software (.dxf, .stp, .igs)
  • Remote diagnostics
  • 24″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Profile-S2D offline software
  • Remote diagnostics
  • 18,5″ high resolution color TFT
  • Bend sequence calculation
  • Crowning control
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Profile-T offline software
  • Numerical touch screen programming
  • 15″ high resolution color TFT
  • Crowning control
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Profile-T offline software

DELEM

ESA

VIS-875W
  • 21.5″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Remote diagnostic
  • 18.5″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Remote diagnostics
  • 15.6″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Remote diagnostics
  • 15″ high resolution color TFT
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Remote diagnostics

PC800 XD

  • 19″ high resolution color touch screen
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Auto program creation and 2D part simulation
  • .DXF tool and part import feature
  • Attach digital photos to part files to show tooling bend orientation
  • Bend Wizard offline software
  • Remote diagnostics

PC Controls

BACK GAUGES

Built to last and customizable for your application. Crafted from heavy duty, aircraft grade aluminum extrusion, our back gauges have been engineered to withstand the rigors of high volume production use while maintaining precision tolerances. With multiple configurations and optional HD beam and additional THK rails for heavier plate applications, our press brake back gauges are among the best on the market today.

SINGLE AXIS (X)

Heavy Duty Back Gauge Rail
X=30″

Heavy Duty Back Gauge Rail
X=30″, R=10″

Heavy Duty Back Gauge Rail
X=30″, R=10″, Z1, Z2

Heavy Duty Back Gauge Rail
X=30″, R=10″, Z1, Z2, X5=+/-4″

Heavy Duty Independent Axis Design
X1=30″, X2=30″,R1=10″, R2=10″,Z1, Z2

TOOLING

From precision ground punches and dies to cnc hydraulic clamping and crowning systems, we’ve got you covered.

TOOLING

  • Wysong partners with all major suppliers to provide tooling packages for our customers, including Rolleri, Wila, Wilson Tool, Eurostamp, and Mate, among others.

All Wysong press brakes come with a full length set of precision ground, segmented upper and lower tooling.

MANUAL QUICK CLAMPS (STANDARD)

Our press brakes come standard with manual, Promecam style quick clamps with an adapter plate to accommodate North American or European style punches.

Alternative style quick clamps are also available upon request.

UPPER HYDRAULIC CLAMPING

We offer Wila upper hydraulic clamping on our press brakes, available for punches with Wila/New Standard, European, and American tangs.

  • Wila Pro: Rated for pressures up to 180 tons/meter
  • Wila Premium: Rated for pressures up to 250 tons/meter

LOWER HYDRAULIC CLAMPING

Lower hydraulic clamping is also available for your press brake.

  • Wila Pro: Rated for pressures up to 180 tons/meter
  • Wila Premium: Rated for pressures up to 250 tons/meter

WILA CROWNING

For press brakes over 7 feet in length, we offer crowning units with genuine Wila wedges as standard. We can offer two types of crowning units, manual and cnc, with standard and heavy duty motors for high tonnage applications.

All Wysong stock press brakes come with Wila CNC crowning as a standard option.

WIDE BOTTOM TABLE

Wysong offers custom width bottom tables for higher tonnage applications, ranging from our standard 6″ wide bottom table with North American die slot up to 30″.

Our engineering team is available to evaluate your parts and present a custom bottom table and machine configuration for your specific needs.

SAFETY SYSTEMS

We’re dedicated to helping you protect your most valuable asset, your people. Wysong press brakes come standard with best in class German laser safety systems from Fiessler and light curtains at the rear of the machine. To date, more than 35,000 AKAS laser safety systems have been sold worldwide as customers demand the Fiessler brand, known for both performance and reliability. Additional point of operation safety and guarding options available upon request.

FIESSLER AKAS II

  • CE and UL Certified, OSHA Approved
  • Rapid Approach up to 10mm Above Part

FIESSLER AKAS V

  • CE and UL Certified, OSHA Approved
  • Rapid Approach up to 0mm Above Part

REAR MACHINE SAFETY

  • CE Certified Standard Rear Light Curtains.
  • Metal Doors Also Available Upon Request.

TECH SPECS

B Series Press Brake Technical Specifications

Model Bending Force
 Bending Length Distance Between Columns STROKE DAYLIGHT THROAT Machine Dimensions Machine Speeds (IPM) Oil Motor Weight
TONS A B C J D L X W X H Approach Return Bend GAL HP LBS
Inches Inches Inches Inches Inches Inches IPM IPM IPM
MB454549431018168582111354283242557,716
MB70708363101816119861143783192445710,053
7010283101816134861143783192445711,248
MB11011010284101816138861144723192445711,745
110122841018161388611447231924451014,176
MB1501501221021018161589211749630724481517,086
1501451261018161819211849630724481520,723
1501691451018162059611849630724481522,046
MB2002001221021018161589611742530724482019,511
2001451261018161819611842530724482023,149
20016914510181620510011842530724482024,361
MB2502501221021018161589612042528324772522,928
2501451261018161819612042528324772525,345
25016914910181620510012042528324772528,109
MB3003001221021018161589812035428324773027,117
3001451261018161819812035428324773029,762
3001691451018162059812035428324773031,526
MB3503501221021019161589812135426024773030,203
3501451261019161819812135426024773031,967
3501691451019162059812135426024773034,390
35020016510191623610112635426024773045,195
35024020010191627610113535426024773055,116

REQUEST A PROPOSAL

Contact Us

We take great pride in our equipment and customer relationships. With over 20,000 machines still in production today, Wysong is a leader in the machine tool industry in North America.

Want to learn more about our MB Series press brakes? Contact us today.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product FAMILY

MH SERIES
Hybrid Servo Hydraulic Press Brake

Learn More

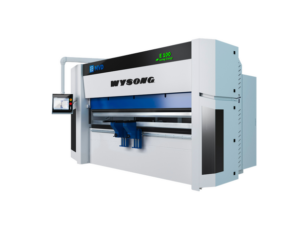

ME SERIES
Belt Driven Electric Press Brake

Learn More

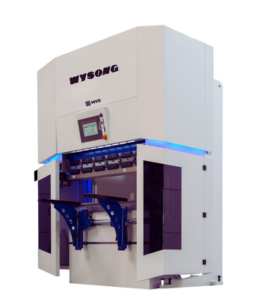

MS SERIES
