MD SERIES PRESS BRAKE

Built to last. Engineered for reliability, speed, precision, and durability.

Request Proposal
  • 16″ Stroke, 20″ Throat Depth
  • Custom Sizes Available
  • Delem, ESA, or PC Controls
  • Servo Motorized Back Gauge
  • .0004″ Ram Repeatability
  • Sliding Front Sheet Support Arms
  • Front and Rear Operator Safety
  • Full Length Segmented Punch and 4 Way Die
  • Manual Pump for Machine Lubrication

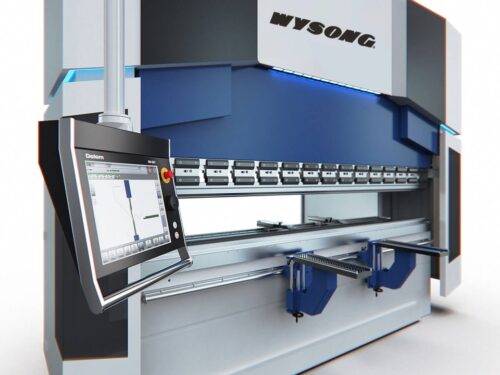

QUALITY FIRST

Wysong equipment is well known throughout North America for being among the most durable machines on the market. Whether your machine is produced at our 110,000 sf factory in North Carolina or by one of our carefully selected partners, we promise to provide proven fabrication equipment with a focus on quality and customer service.

We spend an average of 40 hours of quality assurance on every machine we ship to ensure that it meets our demanding standards.

OUR PROCESS

Machines Backed By People

When you partner with Wysong, you get more than just a great machine.  Our team has hundreds of years of combined experience with fabrication equipment, and we use this experience daily to help our customers.

We understand that every shop is different, which is why we take the time to learn your processes, challenges, and goals before recommending solutions.

Whether you need complementary phone support, field service, technical training, or new equipment for your shop, we’re here to help.

ABOUT US

BUILT TO LAST
CE CERTIFIED

110 - 550 TONS
UP TO 30' LENGTH

INDUSTRY 4.0
COMPATIBLE

OVERVIEW

MD SERIES Standard Features

  • Y1,Y2, X, R CNC (4 Axes)
  • 16″ Stroke,  20″ Throat Depth
  • Servo Motorized Back Gauge with ±.001″ Accuracy (X=30″, R=10″)
  • Manual Promecam Style Quick Clamp Punch Holder
  • Sliding Front Sheet Support Arms
  • AKAS Front Laser Safety
  • Rear Light Curtains
  • GIVI Optic Linear Scales (Italy)
  • HAWE Hydraulics (Germany)
  • Full length, segmented 85° precision ground punches
  • Full length, segmented 4 way precision ground dies
  • LED illumination on RAM
  • Manual Pump for Machine Lubrication

Optional Features

  • Up to 6-Axis Back Gauge
  • 2″ Extended Stroke
  • 4″ Extended Throat
  • Delem, ESA, or PC Controls
  • Automatic Lubrication
  • Hydraulic Clamping
  • Wila Crowning
  • Wide Bottom Table
  • Manual or CNC crowning
  • CNC Sheet Followers
  • Additional Back Gauge Fingers
  • Hydraulic Oil Chiller, Heater
  • Electrical Cabinet A/C
  • Laser Bending Line
  • Extra Weight for Machine

CONTROLS

DA-69S
  • 24″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Profile-S3D offline software (.dxf, .stp, .igs)
  • Remote diagnostics
  • 24″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Profile-S2D offline software
  • Remote diagnostics
  • 18,5″ high resolution color TFT
  • Bend sequence calculation
  • Crowning control
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Profile-T offline software
  • Numerical touch screen programming
  • 15″ high resolution color TFT
  • Crowning control
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Profile-T offline software

DELEM

ESA

VIS-875W
  • 21.5″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Remote diagnostic
  • 18.5″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Remote diagnostics
  • 15.6″ high resolution color TFT
  • Support for industry 4.0 connectivity
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Sensor bending & correction interface
  • Remote diagnostics
  • 15″ high resolution color TFT
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Remote diagnostics

PC800 XD

  • 19″ high resolution color touch screen
  • USB, peripheral interfacing
  • Open system architecture (field service friendly)
  • Auto program creation and 2D part simulation
  • .DXF tool and part import feature
  • Attach digital photos to part files to show tooling bend orientation
  • Bend Wizard offline software
  • Remote diagnostics

PC Controls

BACK GAUGES

Built to last and customizable for your application. Crafted from heavy duty, aircraft grade aluminum extrusion, our back gauges have been engineered to withstand the rigors of high volume production use while maintaining precision tolerances. With multiple configurations and optional wide HD extrusion and additional THK rails for heavier plate applications, our press brake back gauges are among the best on the market today.

SINGLE AXIS (X)

Heavy Duty Back Gauge Rail
X=30″

Heavy Duty Back Gauge Rail
X=30″, R=10″

Heavy Duty Back Gauge Rail
X=30″, R=10″, Z1, Z2

Heavy Duty Back Gauge Rail
X=30″, R=10″, Z1, Z2, X5=+/-4″

Heavy Duty Independent Axis Design
X1=30″, X2=30″,R1=10″, R2=10″,Z1, Z2

TOOLING

From precision ground punches and dies to cnc hydraulic clamping and crowning systems, we’ve got you covered.

TOOLING

  • Wysong partners with all major suppliers to provide tooling packages for our customers, including Rolleri, Wila, Wilson Tool, Eurostamp, and Mate, among others.

All Wysong press brakes come with a full length set of precision ground, segmented upper and lower tooling.

MANUAL QUICK CLAMPS (STANDARD)

Our press brakes come standard with manual, Promecam style quick clamps with an adapter plate to accommodate North American or European style punches.

Alternative style quick clamps are also available upon request.

UPPER HYDRAULIC CLAMPING

We offer Wila upper hydraulic clamping on our press brakes, available for punches with Wila/New Standard, European, and American tangs.

  • Wila Pro: Rated for pressures up to 180 tons/meter
  • Wila Premium: Rated for pressures up to 250 tons/meter

LOWER HYDRAULIC CLAMPING

Lower hydraulic clamping is also available for your press brake.

  • Wila Pro: Rated for pressures up to 180 tons/meter
  • Wila Premium: Rated for pressures up to 250 tons/meter

WILA CROWNING

For press brakes over 7 feet in length, we offer crowning units with genuine Wila wedges as standard. We can offer two types of crowning units, manual and cnc, with standard and heavy duty motors for high tonnage applications.

All Wysong stock press brakes come with Wila CNC crowning as a standard option.

WIDE BOTTOM TABLE

Wysong offers custom width bottom tables for higher tonnage applications, ranging from our standard 6″ wide bottom table with North American die slot up to 30″.

Our engineering team is available to evaluate your parts and present a custom bottom table and machine configuration for your specific needs.

SAFETY SYSTEMS

We’re dedicated to helping you protect your most valuable asset, your people. Wysong press brakes come standard with best in class German laser safety systems from Fiessler and light curtains at the rear of the machine. To date more than 35,000 AKAS laser safety systems have been sold worldwide as customers demand the Fiessler brand, known for both performance and reliability. Additional point of operation safety and guarding options available upon request.

FIESSLER AKAS II

  • CE and UL Certified, OSHA Approved
  • Rapid Approach up to 10mm Above Part

FIESSLER AKAS V

  • CE and UL Certified, OSHA Approved
  • Rapid Approach up to 0mm Above Part

REAR MACHINE SAFETY

  • CE Certified Standard Rear Light Curtains Require Resetting Machine if Someone Enters the Restricted Area Near the Back Gauge.
  • Metal Doors Also Available Upon Request.

TECH SPECS

MD Series Press Brake Technical Specifications

Model Bending Force
 Bending Length Distance Between Columns STROKE DAYLIGHT THROAT Machine Dimensions Machine Speeds (IPM) Oil Motor Weight
TONS A B C J D L X W X H Approach Return Bend GAL HP LBS
Inches Inches Inches Inches Inches Inches IPM IPM IPM
MD110110102841624201388812047231924481015,763
1101221021624201588812047231924481016,534
MD15015012210216242015811112249630724481519,731
15014512216242018111112249630724481523,369
15016914516242020511112249630724481526,139
MD20020012210216242015810912442530724482022,707
20014512216242018110912442530724482026,345
20016914516242020510912442530724482029,256
MD25025012210216242015811012842533024772526,565
25014512216242018111012842533024772529,982
25016914516242020511012842533024772532,357
25020016516242023611013042533024772538,801
25024020016242027611013042533024772549,163
MD30030012210216252015810912835428324773031,195
30014512216252018110912835428324773033,840
30016914516252020510912835428324773036,134
MD35035012210216252015810812835426024773034,833
35014512216252018110812835426024773036,596
35016914516252020510913235426024773038,759
35020016516252023611013235426024773049,824
35024020016252027611013235426024773059,745
MD450450122102162520158109142236189191064043,651
450145122162520181109142236189191064048,501
450169145162520205110142236189191064052,854
450200165162520236110142236189191064058,753
450240200162520276110147236189191064074,957
4503182801625203541101482361891910640101,412
MD550550145122162520181108143189165191325056,217
550169145162520205108143189165191325062,557
550200165162520236108144189165191325069,445
550240200162520276 124154189165191325090,389
5503182801625203541261561891651913250125,663
MD660660169145162624205123160189189201456077,957
660200165162624236128160189189201456081,571
6602402001626242761281601891892014560108,026
6603182801626243541281601891892014560149,914
MD8808801691451626242051261631771651420660101,412
8802402001626242761281631771651420660136,686
8803182801626243541281631771651420660191,802
MD110011001691452030242051441631651541426460157,630
11002402002030242761441711651541426460167,551
11003182802030243541441871651541426460231,485
